Achieving reliable industrial control is not about a single technology—it depends on how effectively sensors, PLCs, DCS, HMIs, communication networks, edge devices, and actuators work together through real-time control loops. By monitoring and adjusting temperature, pressure, flow, speed, and other critical variables, manufacturers can stabilize production, reduce waste, improve quality and throughput, strengthen safety, and prevent unplanned downtime. Feedback, feedforward, cascade, ratio, continuous, batch, and discrete control strategies serve diverse industries, including automotive, food, pharmaceuticals, chemicals, energy, mining, and water treatment. When integrated with an MES, process control delivers greater visibility, recipe management, traceability, KPI tracking, quality coordination, and predictive maintenance. The true secret behind a 9% success rate—or any measurable performance gain—is disciplined implementation: process audits, clear objectives, dependable instrumentation, robust procedures, cybersecurity, operator training, and complete documentation. Together, these practices create a smarter, safer, and more efficient manufacturing environment.
A 9% success rate sounds precise, but the number alone tells me very little.
In industrial control, I need to know what “success” means. Does it refer to fewer unplanned stops, more stable process output, faster fault recovery, or a higher rate of completed control commands? Each measure uses a different baseline.
I have seen teams focus on the control platform while the real issue sits elsewhere: poor sensor data, unclear alarm settings, delayed maintenance, or operators who receive too much information at once.
The useful secret is not a hidden setting. It is a repeatable control process that connects data, people, equipment, and maintenance.
Before changing a PLC program, SCADA screen, or control loop, I write down the result I want to measure.
A simple plant review may include:
The measurement needs a time range and a clear formula.
For example:
Alarm response rate = alarms acknowledged within the target time ÷ total alarms
A plant may report a 9% improvement in this rate after a control change. That does not mean the entire system became 9% more successful. It only shows movement in one selected measure.
This distinction prevents weak decisions and makes project reviews easier to trust.
A controller cannot make a good decision from poor input.
I start by checking the field signals:
A temperature sensor that jumps from 80°C to 120°C in one scan may create false trips, even when the control logic is working as designed.
One food processing site reviewed its temperature alarms after operators reported frequent stoppages. The team found that a sensor cable passed close to a motor power line. The alarm problem was linked to signal interference, not to the setpoint. Moving the cable and improving the signal check reduced nuisance events without replacing the control system.
The lesson is simple: verify the input before editing the response.
A control loop may work well during a steady production run and behave poorly during startup, cleaning, or material changes.
I review each loop across different operating states:
A loop that reacts too slowly can create poor process control. A loop that reacts too aggressively can cause oscillation, valve wear, and repeated alarms.
The tuning process should use recorded trends rather than guesswork. I compare the process value, setpoint, output signal, and related disturbances. Small changes are easier to review than several changes made at once.
When a team adjusts ten loops in one shift, it becomes difficult to know which change helped. A staged review creates a clearer link between action and result.
An alarm should help an operator decide what to do. A long list of warnings does not always improve safety or control.
I ask four questions for each alarm:
If the answer is unclear, the alarm may need a new setting, a better message, or removal from the active alarm list.
A practical alarm message gives useful detail. “Pump fault” is limited. “Cooling pump P-204 stopped; check local breaker and standby pump status” gives the operator a path to follow.
Alarm records can also show patterns. If the same warning appears every shift, the plant may be facing a process or maintenance issue rather than an operator performance issue.
Control systems often record what happened. Maintenance systems record what was repaired. When these records stay separate, repeated faults can look like unrelated events.
I link:
This creates a useful fault history.
Suppose a motor trips several times during high production demand. The control trend may show rising current before each trip. Maintenance records may show that the motor was reset repeatedly without checking the connected pump or mechanical load. The combined record points the team toward a wider inspection.
This approach does not replace qualified maintenance work. It gives the team better information before the inspection begins.
Operators notice small changes long before they appear in a monthly report.
I ask them:
Their answers often reveal gaps that trend data misses.
A control screen may show twenty values, yet hide the one value an operator needs during a fault. A revised screen can group related readings, show the current operating state, and display the next approved action. The goal is not to add more graphics. It is to reduce hesitation during a known event.
Training also needs practice. A short fault simulation can test whether the operator can identify the alarm, confirm the condition, take the approved action, and record the result.
A control change should have a record before it reaches production.
I document:
Testing can begin in a simulator, offline environment, or controlled maintenance window, based on the site’s procedures and risk review.
A small change to a timer, interlock, or alarm limit may affect upstream and downstream equipment. Reviewing the full sequence helps prevent a local fix from creating a new process problem.
A 9% result may be useful when it has a clear baseline.
For example, a site may compare:
That could support a 9% reduction in recorded events. It does not prove that every site will achieve the same result.
I prefer modest claims backed by traceable records. Industrial teams need information they can test, not promises that depend on a headline number.
The strongest control programs usually follow a steady cycle: measure the issue, verify the signal, review the logic, involve operators, test the change, and monitor the result. The process may look less exciting than a secret formula, yet it gives the 9% figure a meaning that engineers, operators, and managers can check.
When an industrial control system stops, the cost is not limited to a few minutes of downtime. Production may slow, operators may lose process data, and maintenance teams may need to trace several possible causes at once.
I have seen many plants treat reliability as a hardware problem. They replace a PLC, add a backup module, or upgrade the control software. These steps can help, but they do not solve every failure. A reliable system usually comes from a simple working formula:
Clear process design + stable equipment + controlled changes + useful data + trained people
Each part supports the others. If one part is weak, the whole control system may become harder to maintain.
A control system should match the production process. Before selecting a PLC, HMI, sensor, or communication network, I map the process from start to finish.
I ask:
This step helps prevent a common problem: a control program that works under normal conditions but gives poor results during a fault.
For example, a conveyor may stop because of a blocked product, a motor overload, or a broken sensor cable. These events need different responses. The operator should not receive one general message such as “Line Fault.” A useful message can show the affected conveyor, the signal that changed, and the action the operator can take.
Clear process notes also help when the original programmer is not available.
A control component should match the working environment. Temperature, dust, vibration, moisture, electrical noise, and cleaning methods can all affect service life.
I check the following points before choosing equipment:
A high-cost component is not always the best choice. A practical component with available spares may reduce repair time more than a complex device that requires long delivery times or special training.
Power quality also deserves attention. Voltage dips, loose terminals, and poor grounding can create faults that appear to come from the PLC or network. A basic power inspection can save many hours of unnecessary software testing.
A reliable PLC program should be understandable to the people who maintain it.
I use clear tag names, consistent structures, short comments, and a common method for handling faults. Important values should not be hidden inside long blocks of code. Operators and technicians need to see what a signal means and why a machine has stopped.
A useful program often includes:
The backup should be tested. A file that cannot be opened, restored, or matched to the installed version offers little help during a breakdown.
Too many alarms can make a control room less effective. When every small signal creates a warning, operators may stop paying attention.
I prefer alarms that answer three questions:
A temperature warning may need a message such as “Pump 2 bearing temperature above setpoint.” A general message like “High Temperature” gives less useful information.
Alarm settings should match the process. A short delay may prevent a temporary signal from creating an unnecessary event. A critical shutdown signal should not be delayed without a clear process reason.
Alarm history can also show repeated issues. If the same motor overload appears every week, the control system is giving maintenance information. The team can inspect the motor, load, wiring, or mechanical alignment instead of only resetting the fault.
Many control problems begin with an unrecorded change. Someone adjusts a timer, replaces a sensor, updates a network device, or changes an alarm limit. The change may solve one issue and create another.
I use a basic change process:
This method does not need a large software platform. A shared maintenance record can work when the team uses it consistently.
A plant that changes control settings without records may spend days trying to identify the source of a new fault. A short note can prevent that confusion.
Industrial control reliability improves when teams study repeated signals, not only major failures.
I review:
The goal is not to collect every possible data point. The goal is to collect information that supports a maintenance decision.
For example, a packaging line may show frequent stops at the same station. The HMI history may reveal that the stop occurs after a certain number of cycles. Maintenance can then inspect the related sensor, guide rail, actuator, or product position instead of checking the entire line.
A control system is part of a working environment. Operators need to know how to respond to normal alarms, while maintenance staff need to understand wiring, backups, and safe testing methods.
I recommend short training sessions built around actual plant conditions:
Training should include examples from the site. A manual written for a different factory may not help an operator who is standing beside a stopped machine.
Reliable industrial control does not come from one product or one software feature. It grows from a clear process, suitable equipment, readable programs, useful alarms, recorded changes, practical data, and people who know how to respond.
When I review a control system, I look for gaps across all of these areas. A stable PLC cannot compensate for poor alarm design. A good maintenance team cannot work efficiently without accurate data. A complete backup cannot help if no one knows how to restore it.
The best approach is simple: design for normal operation, prepare for faults, record what changes, and make every signal useful to the person who must act on it.
A 9% change can look small on a spreadsheet. In an industrial control system, it can affect output, energy use, downtime, product quality, and maintenance work at the same time.
I have seen many plants focus on large upgrades while overlooking small control improvements. A better-tuned loop, a shorter response delay, or a lower pressure setpoint may create more value than expected. The result does not come from the number alone. It comes from where the 9% appears and how often the process repeats.
Industrial systems rarely run through one isolated action. A pump feeds a tank. The tank supplies a process line. The line affects product quality. Product quality influences rework and delivery schedules.
When one control point improves, other parts of the process may benefit.
Consider a production line that operates for 8,000 hours each year. If a control adjustment increases useful operating time by 9%, the plant may gain around 720 additional productive hours, based on the same operating schedule. That does not mean every plant will achieve this result. It shows why a small percentage deserves careful review.
Energy savings can follow the same pattern.
A motor running at a slightly lower speed may consume less power, depending on the equipment and load. A pressure loop that avoids repeated overshoot may reduce wasted compressed air. A temperature loop with less fluctuation may lower scrap and reduce the need for manual correction.
The value comes from repeated operation, not from a single event.
A plant manager may measure a 9% change in several ways:
Each measure tells a different story. A 9% reduction in energy use may not matter if product quality falls. A 9% increase in speed may create more wear if the equipment operates outside its safe range.
I prefer to connect the control metric with a business metric. The question is not only, “Did the loop respond faster?” It is also, “Did the plant produce more acceptable product with the same resources?”
Before changing a controller, I record the current process condition.
Useful baseline data may include:
The measurement period should cover normal operating conditions. A short sample can hide shift changes, raw material differences, seasonal temperature, or planned maintenance.
For example, a packaging line may show stable performance during a quiet weekday shift. The same line may respond differently during a high-volume shift when operators change settings more often. A wider data set gives a more useful picture.
Not every problem needs a new PLC, sensor, or software platform.
I usually look for repeated signals:
These patterns often point to a control issue. The cause may be poor tuning, sensor placement, dead time, an unsuitable setpoint, or a mismatch between equipment capacity and process demand.
A repeated small loss can become a large annual cost.
Equipment replacement may be useful, but it should not be the automatic answer.
A process may perform poorly because the controller uses outdated parameters. A sensor may send delayed information. A valve may have limited travel near the normal operating point. A pump may be oversized for the actual load.
A control review can help identify the source before the plant commits to a larger project.
A practical review may include:
This method keeps the test focused and makes the result easier to explain to production, maintenance, and management teams.
Industrial control changes should follow site procedures and approved safety practices. A small percentage does not remove process risk.
I would define the test limits before making the change:
A change that improves one shift but causes instability during another shift needs more work. The target is not a good result under one narrow condition. The target is a control response that fits the process range.
Control engineers may discuss settling time, overshoot, gain, and dead time. Plant leaders may focus on output, cost, quality, and delivery.
Both views matter.
A useful report can connect them:
The report should also state what was not measured. Clear limits make the result more trustworthy and help teams decide whether to continue, adjust, or stop the change.
Imagine a water treatment process where a dosing pump reacts to a sensor reading. The pump runs at high output, then drops sharply after the sensor detects a change. This cycle repeats throughout the day.
The plant may experience:
A control review may reduce the repeated swings by adjusting loop settings, improving sensor filtering, or correcting the measurement point. If the plant records a 9% reduction in chemical use while maintaining the required treatment result, that change has practical value.
The gain does not come from claiming that every system can save 9%. It comes from testing the right process, using comparable data, and keeping quality and safety conditions in place.
A percentage can be misunderstood when it has no baseline.
A 9% improvement in a low-cost process may have a smaller financial effect than a 2% improvement in a high-energy process. A 9% increase in production speed may create higher maintenance costs. A 9% decrease in downtime may look useful but may not improve delivery if another process remains the bottleneck.
I do not treat 9% as a universal target. I treat it as a useful prompt to ask better questions:
These questions prevent a small number from becoming a misleading sales claim.
Before approving a control improvement, I recommend checking:
A control improvement becomes more useful when the plant can maintain it without constant manual correction.
In industrial control, 9% is not a magic number. It represents the effect of a small change repeated across thousands of cycles, hours, batches, and operating points.
When I review a control system, I look beyond the headline percentage. I look for the source of the loss, the quality of the data, and the effect on people who operate and maintain the process.
A carefully measured 9% improvement may support better production planning, lower waste, and more stable equipment performance. A poorly measured 9% may only create a strong-looking report.
The difference comes from disciplined testing, honest measurement, and a clear link between control performance and plant results.
Industrial control can feel difficult when PLC logic, HMI screens, sensors, networks, and safety systems all need to work together. I have seen many beginners focus on writing code before they understand the process. That approach often creates alarms, unstable cycles, and long troubleshooting sessions.
I use a simple working method: understand the process, define the control goal, build the logic in small parts, test each part, and record what happens. This method does not remove every challenge, but it makes faults easier to find and decisions easier to explain.
I start with the machine or production line, not the programming software.
I ask:
A basic conveyor system shows why this matters. The motor may start when a photoelectric sensor detects a box. A second sensor may confirm that the box reached the next station. A jam timer may stop the motor if the box does not arrive within the expected period.
Without this process map, the PLC program may contain correct instructions that do not match the real machine.
I often write the sequence in plain language:
This list becomes the base for the control design.
A clear tag structure saves time during commissioning.
Inputs may include:
Outputs may include:
Internal conditions connect the two groups. Examples include:
System_ReadyAuto_ModeCycle_ActiveMotor_Run_CommandCylinder_ExtendedJam_FaultI avoid using vague names such as M10 or X23 inside the main logic. Hardware addresses may still exist, but readable tag names help me understand the program months later.
I do not place the entire process into one large ladder routine. I divide it into clear sections:
This structure helps during testing. If the motor does not run, I can check the safety conditions and motor command without searching through the complete program.
A useful permissive may look like this:
System_Ready = Safety_OK AND Air_Pressure_OK AND No_Active_Fault
The motor command can then depend on the permissive:
Motor_Run_Command = Auto_Mode AND System_Ready AND Run_Request
This type of logic makes the reason for a stopped machine easier to identify.
Manual mode helps technicians test individual devices. Automatic mode controls the full sequence.
In manual mode, a technician may extend a cylinder from the HMI or run a conveyor for inspection. Each action should still respect the safety design and equipment limits.
Automatic mode should follow the process sequence. It should not depend on an operator pressing several buttons at the correct moment.
I keep mode selection clear on the HMI and prevent both modes from controlling the same output at the same time. This reduces confusion during maintenance.
An alarm should help the operator decide what to check.
A message such as “Fault 12” provides little guidance. A message such as “Transfer cylinder did not reach extended position within 3 seconds” gives the operator a starting point.
Useful fault messages often include:
For example:
“Conveyor stopped: box not detected at exit sensor.”
This message is more useful than a general “Line Fault” alarm.
I also separate active faults from fault history. The active alarm shows the current condition. The history helps technicians review repeated problems.
Testing on a running production line can be costly and unsafe. I use several test stages:
Offline logic review
I check tag names, sequence steps, timers, interlocks, and reset behavior.
Simulation or test mode
I force selected input conditions only when the control system and site rules allow it. Each force must be recorded and removed after the test.
Dry run
The machine operates without product. This reveals sequence errors and motion problems.
Controlled production test
The machine runs with a small quantity of product while the team observes cycle time, alarms, and operator actions.
A practical example comes from a packaging line. During a dry run, the transfer cylinder completed its movement correctly. When boxes were added, the entry sensor detected some products late because the boxes were not evenly spaced. The control logic was not broken, but the detection timing needed adjustment. Testing with real product exposed a condition that simulation did not show.
Industrial control becomes easier to maintain when the system records useful information.
I monitor:
A repeated “box not detected” alarm may point to a dirty sensor, poor product spacing, vibration, or a timing value that is too short. The alarm count gives the team a place to begin. It does not replace physical inspection.
I also keep a change log. Each entry can include the date, program change, reason, person responsible, and test result. This helps the next technician understand why a timer or alarm setting changed.
A PLC program can control a process, but it should not be treated as the only safety measure. Emergency stops, guard switches, safety relays, and safety controllers need a design that matches the machine risk and local requirements.
I never bypass a safety device just to make commissioning faster. A temporary test condition should have clear approval, documentation, and removal steps.
A good industrial control strategy balances productivity, operator understanding, maintainability, and safe behavior. When I begin with the process, use clear tags, divide the logic, test in stages, and record actual machine behavior, troubleshooting becomes more focused. The goal is not to create the most complex program. The goal is to create a control system that people can operate, inspect, and maintain with confidence.
We has extensive experience in Industry Field. Contact us for professional advice:Wang Zhixiang: 241126365@qq.com/WhatsApp +8613777730323.
Dale E Seborg Thomas F Edgar Duncan A Mellichamp Francis J Doyle 2010 Process Dynamics and Control
Karl J Åström Richard M Murray 2021 Feedback Systems An Introduction for Scientists and Engineers
Norman S Nise 2019 Control Systems Engineering
W Bolton 2021 Programmable Logic Controllers
International Society of Automation 2016 Management of Alarm Systems for the Process Industries
International Electrotechnical Commission 2015 Functional Safety of Electrical Electronic and Programmable Electronic Safety Related Systems IEC 61508
Is Your Valve Failing? See How Dong
Ditch the leaks with IPC’s metal hard-sealed

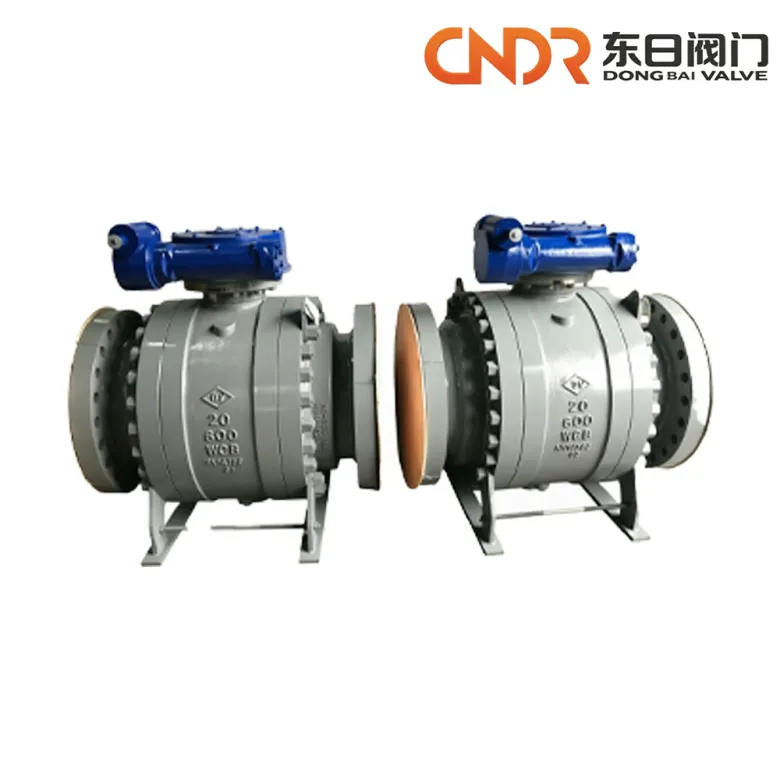

Trunnion-mounted ball Valves are of
Facing a 50% leak risk in demanding service? Our API forged steel ball
Email to this supplier
August 27, 2026
August 26, 2026
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
Fill in more information so that we can get in touch with you faster
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
