50% Leak Risk? Our API Forged Steel Ball Valves Stop It.

August 26, 2026

Facing a 50% leak risk in demanding service? Our API forged steel ball Valves are engineered to provide dependable sealing and long-term flow control in oil and gas, refinery, petrochemical, chemical, power, LNG, and industrial applications. Designed in accordance with API 602 and ASME B16.34, they are available in pressure classes 800, 1500, 2500, and 4500, with socket weld, butt weld, threaded, or flanged connections. Fire-safe designs can include secondary metal seals, anti-static devices, blowout-proof stems, and heat-resistant materials, with API 607 or API 6FA certification available for critical applications. Options such as A105N carbon steel, F316/F316L stainless steel, alloy steels, duplex grades, specialized trims, Stellite hard-facing, NACE compliance, PMI, PWHT, impact testing, and comprehensive NDT inspections help match each Valve to its service conditions. Backed by controlled forging, traceability, rigorous testing, and experienced engineering support, our valves help reduce leakage risks, protect personnel and equipment, and deliver reliable performance in high-pressure, high-temperature, and hazardous environments.



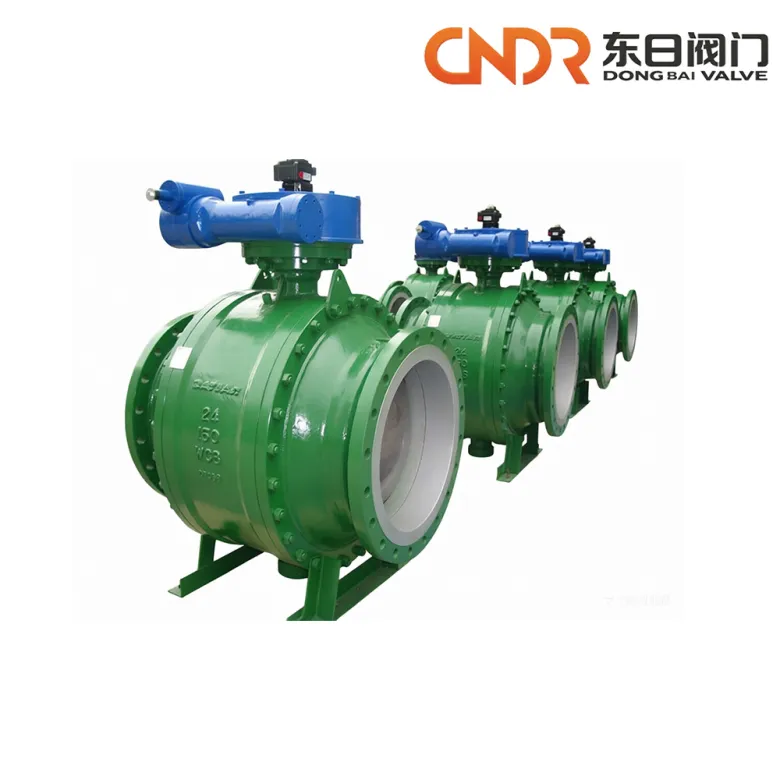

Stop 50% Leak Risks with Forged Steel Ball Valves


A leaking valve can raise maintenance costs, interrupt production, and create safety concerns around steam, water, oil, gas, or process fluids. I have seen many leak problems start with a simple mismatch between the valve, the pipe system, and the working conditions.

Forged steel ball valves can help reduce this risk when the valve body, seat material, pressure rating, and installation method match the application. They do not remove every possible leak source, and no valve can promise the same result in every system. The practical goal is to control the common causes of leakage before they become larger maintenance issues.

Where Leak Risks Often Begin

A valve may leak because of:

  • A body material that does not suit the medium
  • A seat that cannot handle the working temperature
  • Incorrect pressure selection
  • Damaged threads or pipe ends
  • Poor sealing during installation
  • Excessive force on the handle
  • Dirt or metal particles inside the pipeline
  • Wear caused by frequent opening and closing

When I review a valve specification, I do not look at the valve name alone. I check the full operating condition.

The medium may be clean water, compressed air, natural gas, steam, oil, or a chemical fluid. Each one places different demands on the valve. Temperature, pressure, flow rate, pipe size, and connection type also affect service life.

Why Forged Steel Ball Valves Are Used

A forged steel valve body is formed from heated steel under pressure. This process can produce a compact body with strong resistance to pressure loads. The result may suit systems that need a durable shut-off valve for demanding industrial service.

A ball valve uses a drilled ball to control flow. When the hole aligns with the pipe, the valve opens. When the ball turns across the flow path, the valve closes.

This design offers several useful features:

  • A short quarter-turn operation
  • A compact flow path
  • Low operating time compared with multi-turn valves
  • Suitable shut-off performance when the seats remain in good condition
  • Options for threaded, socket weld, or butt weld connections

The valve body alone does not determine leak control. Seat material, stem sealing, machining quality, and correct assembly also matter.

How I Choose the Right Valve

I use a simple review process before placing an order.

1. Confirm the medium

Identify the fluid and check whether it may attack the body, ball, stem, or seats. A valve for clean water may not suit a process fluid with strong chemical content.

2. Check pressure and temperature

Read the manufacturer’s pressure-temperature data. A valve rated for a certain pressure at room temperature may have a lower allowable pressure at a higher temperature.

Steam service needs special attention. The body, seats, packing, and connection method must match the steam conditions.

3. Select the connection

Threaded forged steel ball valves can suit smaller pipe sizes and service lines where removal is needed. Welded connections may be considered for systems that need a permanent joint with fewer threaded leak points.

The pipe material and valve material should be reviewed together. An unsuitable connection can create problems even when the valve itself is well made.

4. Review the sealing parts

Seats are available in different materials. Common options include PTFE and reinforced polymer types, while metal-seated designs may be used for selected high-temperature or abrasive services.

I check the seat’s temperature range and chemical compatibility instead of choosing by price alone.

5. Match the operating method

A manual handle may work well for a local shut-off point. Pneumatic or electric actuation may suit a control area that needs remote operation.

The actuator must be sized for the valve’s operating torque and system conditions. A weak actuator may fail to close the valve fully. An oversized actuator may place unnecessary stress on the stem or body.

Installation Practices That Help

Good installation can prevent many avoidable leaks.

Keep the pipeline clean before fitting the valve. Weld slag, rust, dust, and cutting debris can damage the seats during the first few cycles.

Make sure the pipe is aligned with the valve. A valve should not be used to correct an offset pipe. External stress can affect the body and connections.

Use a suitable sealing method for threaded ends. Apply sealant to the pipe thread rather than forcing excess material into the valve opening. Too much sealant may enter the flow path and interfere with the ball or seat.

Use the correct tools on the valve body or connection area. Do not apply a pipe wrench to the handle or stem.

After installation, open and close the valve slowly. Check the joint, stem area, and downstream side under the planned test pressure. A pressure test should follow the project specification and the valve manufacturer’s guidance.

A Practical Maintenance Example

A small utility line in a workshop developed a slow drip near a threaded ball valve. The operator replaced the valve, but the leak returned after several days.

The inspection showed that the pipe was slightly misaligned. The installer had also used too much thread sealant and tightened the valve by applying force to the handle area. The replacement valve was not the main problem. The connection stress and installation method were.

The repair team corrected the pipe alignment, cleaned the threads, used a suitable sealant, and tightened the valve with the proper tool. The line then passed its pressure check.

This type of case shows why leak prevention needs more than a stronger valve body. Product selection and installation must work together.

A Simple Leak-Risk Checklist

Before ordering or installing a forged steel ball valve, I check:

  • Fluid type
  • Normal and maximum pressure
  • Normal and maximum temperature
  • Pipe size
  • Connection standard
  • Body and trim materials
  • Seat and seal materials
  • Manual or automatic operation
  • Installation direction and access
  • Inspection and pressure-test requirements
  • Spare parts and maintenance access

A target such as “50% lower leak risk” should be treated as a project goal, not a guaranteed valve result. The actual outcome depends on the equipment, working conditions, installation quality, and maintenance plan.

When these points are reviewed together, forged steel ball valves can provide a practical shut-off option for many industrial piping systems. The best choice is not the valve with the strongest-sounding description. It is the valve that matches the medium, pressure, temperature, connection, and operating method of the line.


Built to Block Leaks Before They Start


A leak rarely begins with a dramatic burst. More often, it starts with a small gap, a worn seal, or water that sits where it should not. By the time a stain appears on the ceiling, moisture may already have reached the wall, floor, or insulation.

I prefer to deal with that risk before water enters the structure.

A leak-resistant system should not depend on one seal alone. It should guide water away from vulnerable joints, reduce pressure on connection points, and keep common entry paths covered during normal use. That approach helps protect the areas people often overlook, such as corners, overlaps, fasteners, and changes in surface level.

When I check a leak-prone area, I look at four points:

  • Where water collects
  • Where two materials meet
  • Where movement may create a gap
  • Where a seal may wear down over time

These points often reveal more than the visible surface.

A strong prevention plan starts with the base. The surface needs to be clean, dry, and free from loose material. Dust, grease, and trapped moisture can affect how well a sealant or protective layer bonds. If the surface is damaged, I repair it before adding another layer. Covering a weak area does not remove the cause of the problem.

The next step is to protect the joints. Corners and connections can move as materials expand, contract, or settle. A suitable sealant, gasket, flashing piece, or waterproof layer can help close these paths. The right choice depends on the surface, exposure, temperature range, and expected movement.

Drainage also matters. Water should have a clear route away from the structure. Even a well-sealed joint can face trouble when water remains in the same place for long periods. I check slopes, outlets, overlaps, and edges to make sure water is not being directed toward a vulnerable connection.

A simple example is a balcony door. A homeowner may notice water near the inside frame and assume the door itself is leaking. A closer inspection may show a blocked drain channel or a small opening where the frame meets the wall. Sealing the visible spot alone may only hide the symptom. Cleaning the drainage path and treating the frame joint addresses more of the water route.

The same idea applies to roofs, windows, bathrooms, storage areas, and outdoor equipment. Prevention works best when the whole path is considered rather than one mark or crack.

I also pay attention to installation details. A seal that is stretched too far, applied to a wet surface, or left with an uneven edge may not perform as expected. Manufacturer instructions should guide curing time, surface preparation, and use conditions. If a repair involves hidden water damage, electrical parts, or structural materials, a qualified professional should assess it.

Regular checks can stay simple. Look for dark marks, peeling paint, soft trim, musty smells, standing water, or a seal that has split away from the surface. These signs do not always confirm an active leak, but they show that the area needs closer attention.

The best leak protection is rarely about adding more material. It is about placing the right protection at the right weak point, giving water a clear way out, and checking the work before a small opening becomes a costly repair. When a product is built around that principle, it helps shift the focus from reacting to leaks to reducing the paths that allow them to begin.


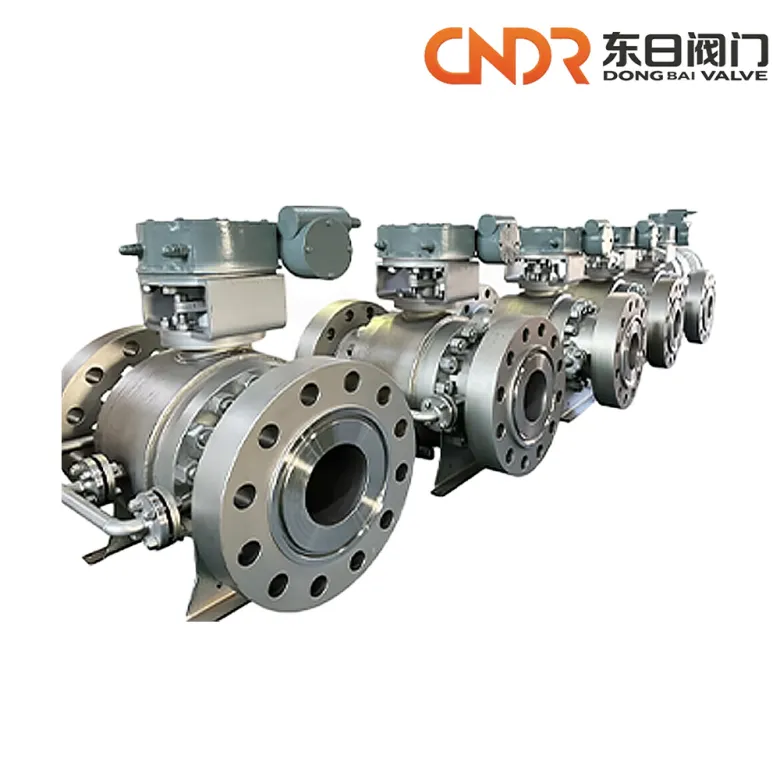

Stronger Valves, Safer Flow



A valve may look like a small part of a process line, yet its condition can affect pressure control, equipment life, worker safety, and production continuity. When a valve leaks, sticks, or closes too slowly, the problem can spread through the system.

I have seen many maintenance teams focus on pipe size and purchase price while giving less attention to media compatibility, operating temperature, and service frequency. That approach can create repeated repairs. A stronger valve starts with a clear understanding of the flow conditions.

Match the valve to the process

The handled medium shapes the valve selection.

Water, steam, oil, gas, acids, and abrasive slurries place different demands on valve bodies, seats, seals, and stems. A material that performs well in clean water may not suit a corrosive chemical line. A soft seal may work in a moderate-temperature process but require a different design in a steam system.

Before choosing a valve, I review:

  • Fluid type and chemical properties
  • Normal and peak pressure
  • Operating temperature
  • Flow rate
  • Pipe size and connection type
  • Frequency of opening and closing
  • Potential particles or solids in the medium
  • Indoor or outdoor installation conditions

This basic review helps reduce mismatched components and unexpected maintenance work.

Select the right valve design

Each valve type supports a different operating need.

Ball valves are often used for quick shutoff. Their compact design can suit water, air, gas, and some process fluids when the body and seal materials match the application.

Butterfly valves can support flow isolation in larger pipelines where space and weight need to be managed. The disc, seat, and actuator should match the pressure and medium.

Gate valves are commonly used for on-off service. They are not usually selected for regular throttling because partial opening may increase wear and vibration.

Globe valves can provide more controlled flow adjustment. Their internal path may create more pressure loss, so the process requirements should guide the choice.

Check valves help limit reverse flow. The correct style depends on flow direction, closing speed, pressure conditions, and the risk of water hammer.

A valve that fits the pipe may still be unsuitable for the process. Design function matters as much as nominal size.

Pay attention to pressure and temperature

A pressure rating is not a general guarantee for every operating condition. Ratings can change with temperature, material, connection type, and application.

I recommend checking the valve data sheet against the actual line conditions. Look at the working pressure, pressure spikes, temperature range, seat material, and body material. A system that normally operates at a moderate pressure may still experience short pressure surges during pump startup or rapid closure.

Water hammer is a common example. When a valve closes too quickly, the moving liquid can create a pressure wave. This may lead to noise, vibration, joint damage, or premature valve wear. A slower actuator, a different valve design, or a flow control plan may help reduce the risk.

Build safety into operation

A safer flow system depends on more than a strong body and tight seal. The valve should be easy to identify, operate, inspect, and isolate.

Useful practices include:

  • Marking valve function and flow direction
  • Keeping access paths clear
  • Using suitable lockout and isolation procedures
  • Checking actuator settings
  • Inspecting packing, bolts, flanges, and supports
  • Recording leakage, vibration, and operating resistance
  • Confirming that relief devices and isolation points are easy to reach

For automated valves, the actuator and control signal need the same level of attention as the valve body. Incorrect torque settings can damage seats. Poor alignment can increase stem load. A control failure may leave the valve in the wrong position.

Use maintenance records to find patterns

A maintenance log can reveal problems that are hard to see during a single inspection.

I record:

  • Valve location and service
  • Date of installation
  • Valve type and size
  • Seal and body materials
  • Repair history
  • Leakage observations
  • Actuator issues
  • Pressure and temperature conditions

Suppose the same valve in a cooling-water line needs packing adjustment every few months. The cause may not be the packing alone. Pipe movement, vibration, incorrect installation, or excessive pressure fluctuation may be involved. Replacing the packing without checking the surrounding system may only delay the next repair.

At a municipal water facility, operators may notice that a large butterfly valve takes longer to close after years of service. A review of the actuator, stem, disc alignment, and debris around the seat can help identify the cause. Cleaning and adjustment may be suitable in one case. A seat replacement or actuator service may be needed in another. The correct action depends on inspection results rather than assumptions.

Installation affects valve life

Even a suitable valve can perform poorly when installation is rushed.

I check that:

  1. The pipeline is supported without placing extra load on the valve.
  2. Flanges are aligned before bolts are tightened.
  3. The flow direction matches the valve design.
  4. The line is cleaned before commissioning.
  5. The actuator has enough space for service.
  6. The valve is not used to correct pipe misalignment.
  7. The system is tested at suitable conditions.

Debris left in a new pipeline can damage seats and cause leakage during early operation. Excessive bolt force can distort some valve bodies or flange connections. Clear installation records make later service easier.

Choose suppliers by technical fit

A reliable purchasing process should include more than a product image and a low quoted price.

I look for:

  • Complete material information
  • Pressure and temperature data
  • Connection dimensions
  • Test documents when required
  • Spare part availability
  • Clear actuator specifications
  • Installation and maintenance guidance
  • Responsive technical support

The supplier should be able to explain why a valve suits the stated service. If the technical data is incomplete, the buyer may need to ask more questions before approval.

A valve is part of a working system, not an isolated item. Its performance depends on piping, pumps, controls, installation, and maintenance.

Stronger valves support safer flow when the selection matches the process, the installation follows sound practice, and inspections are based on real operating conditions. I do not treat valve replacement as a quick fix. I use the failure history, process data, and service environment to decide what should change.

That approach helps teams reduce avoidable leakage, improve flow control, and make maintenance work more predictable.


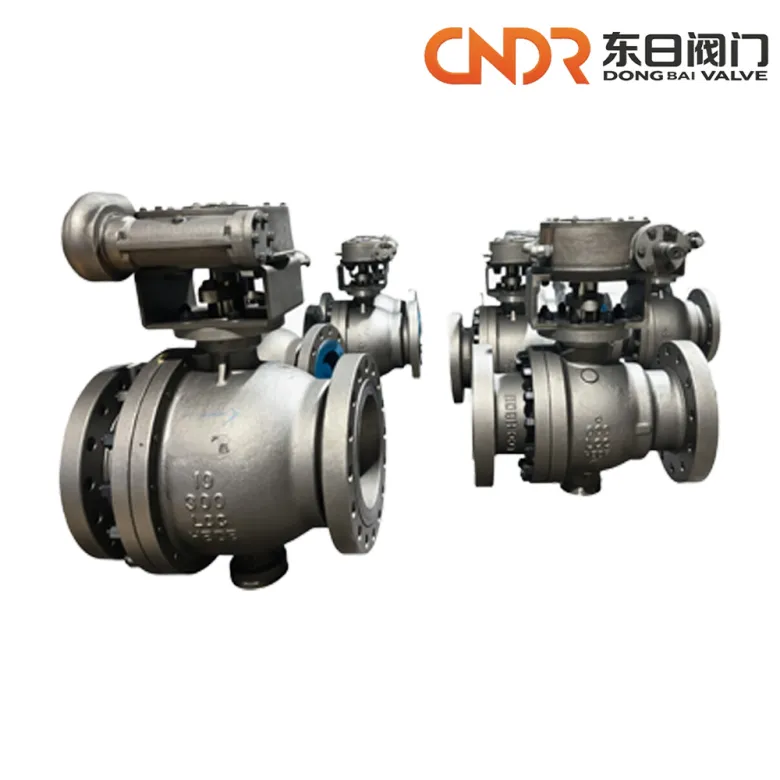

Protect Your API System with Reliable Ball Valves



A ball valve may look like a small part of an API system, but its condition can affect flow control, cleaning, maintenance, and product handling. When a valve leaks, traps residue, or fails to close fully, the problem can spread to pumps, piping, tanks, and production schedules.

I look at ball valves as part of the full process line, not as separate hardware. The right choice depends on the fluid, pressure, temperature, cleaning method, connection type, and operating frequency.

Start with the process conditions

Before selecting a valve, I record the main working data:

  • Fluid type and concentration
  • Operating and cleaning temperature
  • Working pressure
  • Required flow rate
  • Pipe size and connection standard
  • Manual or automated operation
  • Cleaning and sterilization method
  • Frequency of opening and closing

A stainless steel ball valve may suit many API process lines, but material selection still needs care. The seat, seal, stem, and body must be checked against the process fluid and cleaning chemicals. PTFE, EPDM, and other seal materials can respond differently to heat, solvents, acids, or alkaline cleaners.

A valve that works well on a water line may not perform the same way on a solvent or concentrated process fluid.

Choose a valve design that limits product retention

Residue can collect in dead spaces around the ball, seat, stem, or connection area. This creates cleaning challenges and may raise concerns during batch changeover.

For hygienic or sensitive API applications, I review:

  • Full-port or reduced-port design
  • Internal surface finish
  • Cavity shape around the ball
  • Drainability
  • Welded or sanitary connections
  • Seal position and material
  • Suitability for clean-in-place procedures

A full-port valve can support smoother flow and reduce restriction in the line. A cavity-filled or cavity-reduced design may help limit product buildup, depending on the process layout.

The valve alone does not decide whether a system is easy to clean. Pipe slope, line routing, drain points, gasket placement, and operating steps all matter.

Match the valve to the pressure and temperature range

A valve should not be selected only by pipe diameter. I check the pressure rating at the actual operating temperature and compare it with pressure changes that may occur during startup, shutdown, flushing, or pump operation.

Pressure surges can place stress on the body, stem, seats, and connections. A valve with a suitable rating can support more stable operation, but the full piping system still needs review.

Temperature also affects seal performance. Repeated heating and cooling can change the behavior of soft seats and elastomers. If the system uses hot water, steam, or chemical cleaning, I check the manufacturer’s technical data rather than relying on a general temperature figure.

Consider manual and automated control

Manual valves may suit low-frequency isolation points. Automated valves can support repeatable operation when the system includes remote control, interlocks, or batch sequences.

For an automated ball valve, I review:

  • Actuator torque
  • Fail-open or fail-closed position
  • Air or electric supply
  • Feedback signal
  • Cycle frequency
  • Emergency shutdown needs
  • Access for inspection

The actuator should have enough working torque for the valve under actual line conditions. Oversizing can increase cost and may place extra load on the stem. Undersizing can lead to incomplete movement or operating failure.

A position indicator can help operators confirm whether the line is open, closed, or between positions. This simple feature can reduce mistakes during maintenance and product transfer.

Use documentation to support maintenance

A reliable API system needs more than a valve installed in the pipe. I keep records for:

  • Material certificates
  • Seal and seat materials
  • Pressure test results
  • Surface finish data, where required
  • Installation date
  • Cleaning instructions
  • Replacement part information
  • Inspection and service history

A clear record helps maintenance staff identify the correct seal kit or actuator without removing unrelated equipment from service.

For example, a small ingredient-processing plant found repeated flow interruptions near a transfer tank. The issue was not the pump. Operators were closing a manual ball valve against pressure, and the seat had started to wear after frequent cycles. The plant changed the valve location, added a more suitable actuated model, and set a routine inspection based on cycle count. The line became easier to operate, and maintenance staff could plan seal replacement during scheduled service.

The result came from reviewing valve selection, installation, and operating habits together.

Check installation before commissioning

During installation, I confirm that the valve is aligned with the pipe and that the body is not carrying pipe stress. Welding debris, metal particles, and seal fragments should not remain in the line.

The commissioning check can include:

  1. Inspect the valve and connections.
  2. Confirm the flow direction and operating position.
  3. Test opening and closing without process fluid.
  4. Check for external leakage.
  5. Test the line under controlled pressure.
  6. Confirm actuator feedback and safety positions.
  7. Record the test results.

A ball valve can help protect an API process system when its materials, design, pressure rating, and operating method match the actual application. I focus on the complete line, not only the purchase price. Good selection reduces avoidable cleaning issues, unplanned stoppages, and confusion during maintenance while keeping the system easier to inspect and operate.

Interested in learning more about industry trends and solutions? Contact Wang Zhixiang: 241126365@qq.com/WhatsApp +8613777730323.


References


International Organization for Standardization 2015 Industrial valves Testing of metallic valves

American Petroleum Institute 2021 API Standard 608 Metal Ball Valves Flanged Threaded and Welding Ends

American Society of Mechanical Engineers 2022 Process Piping ASME B31 3

International Society of Automation 2019 Control Valve Sizing and Selection Practices

Manufacturers Standardization Society 2018 Steel Valves Flanged and Butt Welding Ends for General Service

European Committee for Standardization 2016 Industrial valves Pressure testing of metallic valves and valve assemblies

Contact Us

Author:

Mr. Wang Zhixiang

Phone/WhatsApp:

+86 13777730323

Popular Products
You may also like
Related Information
9% Success Rate: The Secret to Perfect Industrial Control.

Achieving reliable industrial control is not about a single technology—it depends on how effectively sensors, PLCs, DCS, HMIs, communication networks, edge devices, and actuators work together th

Is Your Valve Failing? See How Dongri Fixes It Fast.

Is Your Valve Failing? See How Dong

Ditch the Leaks: Metal Hard Sealed Valves That Last.

Ditch the leaks with IPC’s metal hard-sealed

Why Choose Floating Over Trunnion? The 3 Truths Revealed.

Trunnion-mounted ball Valves are of

Related Categories

Email to this supplier

Subject:
Email:
Message:

Your message must be between 20-8000 characters

Copyright © 2026 Zhejiang Dongri Valve Co., Ltd. All rights reserved. Privacy Policy

We will contact you immediately

Fill in more information so that we can get in touch with you faster

Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.

Send
